Local

Overview

We will use local environment with Vagrant and VirtualBox to test best practices.

Vagrant
  • Vagrant is an open-source tool for building and managing virtualized development environments. It helps developers create and configure reproducible and portable development environments that closely mimic production setups.
Virtualbox
  • VirtualBox is a powerful open-source virtualization software developed by Oracle Corporation. It allows users to run multiple guest operating systems (OS) simultaneously on a single physical machine.

Configuration

Requirement

  • Machine 1: Linux-server
    • IP: 192.168.33.100
    • Memory: 2048 Mb
  • Machine 2: Jenkins-server
    • IP: 192.168.33.110
    • Memory: 5120 Mb
  • Machine 3: Monitor-server
    • IP: 192.168.33.120
    • Memory: 2048 Mb

Vagrantfile

# -*- mode: ruby -*-
# vi: set ft=ruby :

Vagrant.configure("2") do |config|

  config.vm.box = "ubuntu/focal64"

  # Configuration for the first virtual machine
  config.vm.define "machine1" do |machine1|
    machine1.vm.network "private_network", ip: "192.168.33.100"
    machine1.vm.hostname = "linux-server"
    machine1.vm.provider "virtualbox" do |vb|
      vb.memory = "2048"
    end
    machine1.vm.synced_folder "./datas", "/vagrant_data"
  end

  # Configuration for the second virtual machine
  config.vm.define "machine2" do |machine2|
    machine2.vm.network "private_network", ip: "192.168.33.110"
    machine2.vm.hostname = "jenkins-server"
    machine2.vm.provider "virtualbox" do |vb|
      vb.memory = "5120"
    end
    machine2.vm.synced_folder "./datas", "/vagrant_data"
  end

  # Configuration for the third virtual machine
  config.vm.define "machine3" do |machine3|
    machine3.vm.network "private_network", ip: "192.168.33.120"
    machine3.vm.hostname = "monitor-server"
    machine3.vm.provider "virtualbox" do |vb|
      vb.memory = "2048"
    end
    machine3.vm.synced_folder "./datas", "/vagrant_data"
    machine3.vm.provision "shell", inline: <<-SHELL
      apt-get update
    SHELL
  end

end

Installation

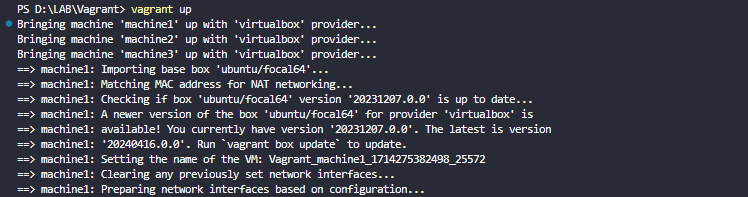

  • vagrant up 25

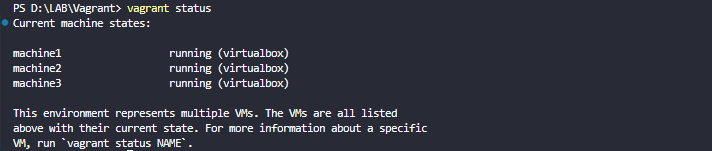

  • vagrant status 25

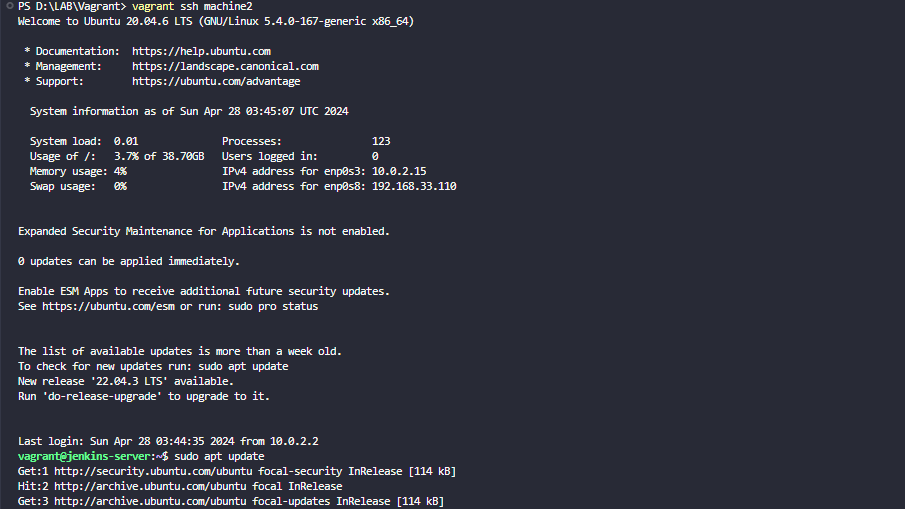

  • vagrant ssh 25

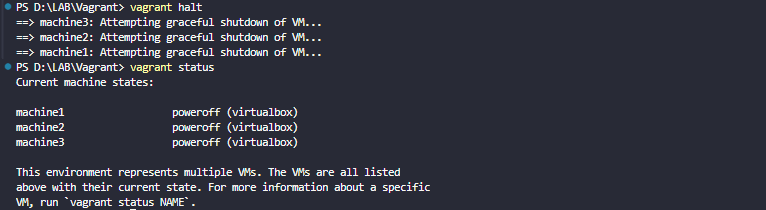

  • vagrant halt 25
